Painful joints? Solving aftermarket pivot pain points for good

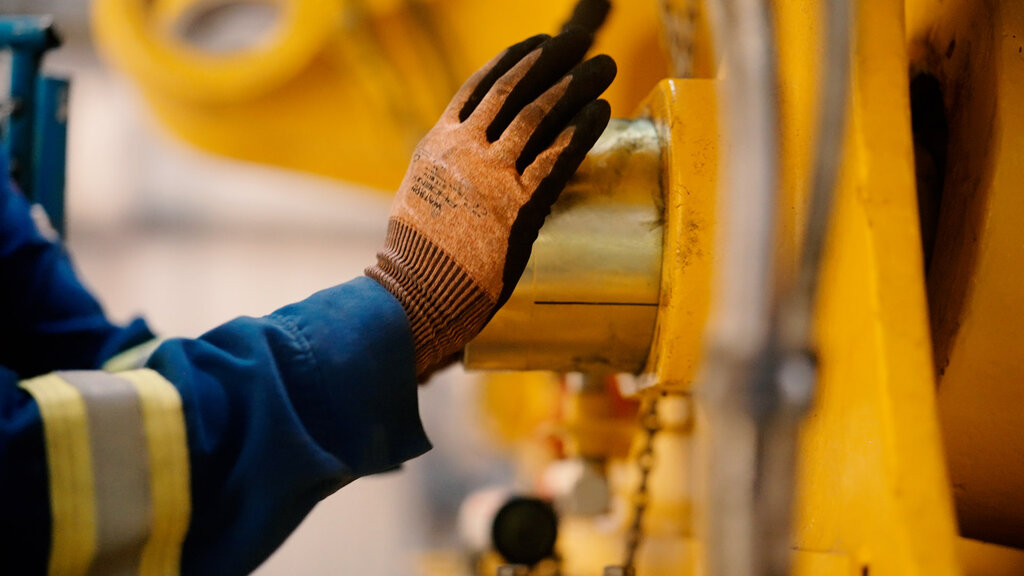

Main image credit: Nord-Lock Group

When using heavy machinery, pivots quietly decide whether a machine keeps earning its keep or sits idle waiting for repairs. Pins may look simple, but every loose joint, worn lug or seized axle translates directly into downtime, labour hours and mounting lifecycle costs. For machine owners, operators and repair teams, pivot maintenance is a familiar frustration, and one the Expander^® System was designed to eliminate.

Developed from a deceptively simple engineering insight in the 1950s, the Expander System has since been installed more than two million times worldwide. It has a straightforward purpose; permanently eliminate lug wear, simplify pin replacement, and restore pivots without welding or line boring. For the aftermarket, that focus maps neatly onto the most common pain points.

Reactive pin replacement is expensive long before parts are even ordered. Traditional repairs often require welding and line boring, specialist contractors, and extended machine shutdowns. The Expander System changes that equation by mounting directly into existing—or worn—lug bores.

When will I start to notice the cost benefits of switching to the Expander System?
In most cases, immediately. Installation is fast and does not require welding or line boring, which reduces both labour costs and machine downtime. Because the system permanently eliminates future lug wear, reactive maintenance drops away and lifecycle costs become far more predictable.

This shift from repeated repair to permanent correction is what allows operations to recover value quickly, particularly on high-utilisation assets.

Lug wear occurs when clearance between a conventional pin and bore allows movement. Over time, this play deforms the bore, concentrates load, and accelerates failure. The Expander System addresses the root cause by expanding sleeves that conform to the existing wear pattern and lock the pin in place.

Will the Expander System sit securely in worn or oval lug bores?
Yes. As the pivot is loaded, the round expansion sleeves deform to match the bore shape. Fasteners are then re-torqued to close any remaining gap. Depending on the level of wear, re-torquing may be required for several days until the sleeves fully settle. Once seated, movement is eliminated.

How far can the sleeves expand to accommodate wear?
Standard sleeves can expand up to 2 mm beyond their original diameter. For more heavily worn lugs, larger sleeves, X-Kits (up to 4 mm expansion), or custom R-Kit solutions are available.

If ovality exceeds 1.5 mm, the bore must be made rounder before installation—typically with grinding or line boring—but even then, Expander avoids repeated future repairs.

Aftermarket repairs don’t always happen in a workshop. Mines, construction sites and ports demand solutions that work in the field, often with limited access.

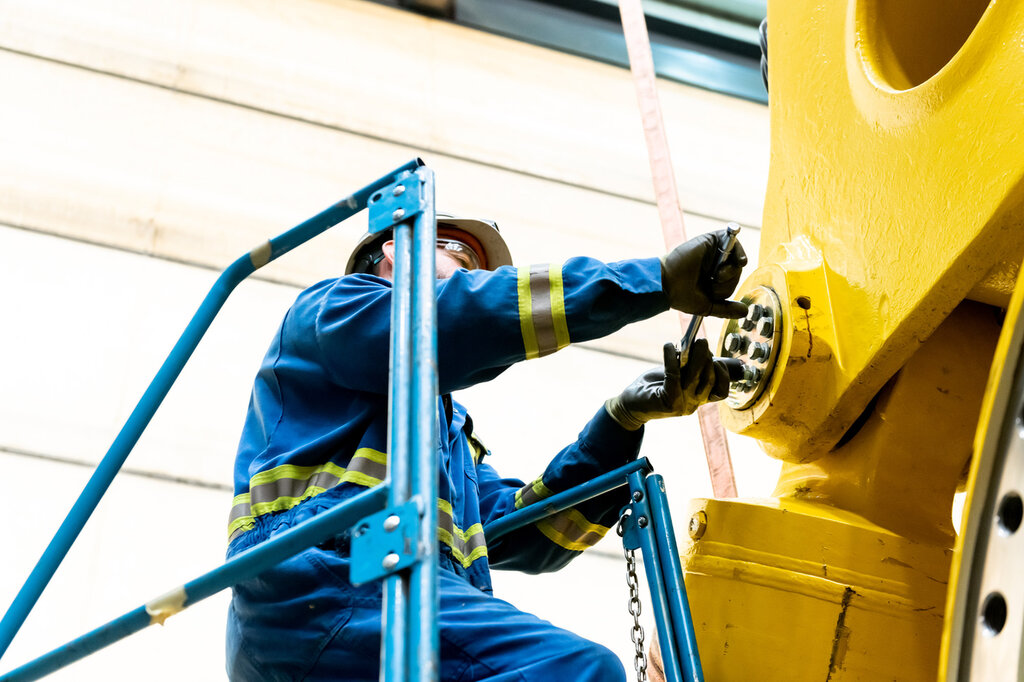

Can an Expander replacement pin be installed in the field?
Yes. As long as the pivot can be safely unloaded and supported, installation can be completed on-site.

What if access is available from only one side of the pivot?
The Expander System’s through-bolt design allows mounting and torquing from one side only.

What tools are required for installation and removal?
Standard hand tools and grease are usually sufficient. Larger pins may benefit from additional lifting or support tools, much like conventional pin replacement.

For faster change-outs, Expander can also supply adapters, hydraulic tooling and custom sleeve features to aid frequent removal.

Uncertainty around sizing and lead times is another common aftermarket concern. Expander addresses this with an unusually broad design envelope and rapid production.

What size range is the Expander System available in?
There is effectively no fixed range. Pins are produced to suit the application, with diameters from Ø8 mm to Ø460 mm and lengths up to 2.4 metres.

How do I find the right Expander System for my machine?
The webshop allows searches by make and model, with over 80,000 designs available. If a machine isn’t listed, dimension sheets guide accurate measurement for a custom quote.

How quickly can orders be delivered?
Most aftermarket orders ship within 48 hours. Urgent repairs can be expedited with express shipping.

Quality, traceability and long-term performance are central to the system’s design. Pins are fully traceable by lot number, produced in Expander’s own facilities, and supplied with certification where required. Provided installation and maintenance are done correctly, the system carries a functional lifetime warranty.

Can the Expander System be removed and reused?
Yes. Undamaged systems can be dismounted and re-installed. For larger pins, optional flanges or threaded sleeves allow removal tools such as slide hammers or pullers to be used safely and efficiently.

For the aftermarket, the value proposition is simple but profound: fewer repairs, faster turnaround, increased serviceability and pivot joints that stay tight for the life of the machine. In environments where uptime defines profitability, that makes pivot pins anything but small components.

Where can I learn more about the Expander System and explore ordering options?
Detailed product information, existing pin designs and ordering tools are available through the Expander webshop, where users can search by machine make and model, manage accounts and track orders. For non-standard applications or additional guidance, Expander also provides dimension sheets and direct engineering support to help identify the right solution.
