SOMETIMES…

Sometimes it is about controlling emissions to atmosphere, or collecting product, or about energy. Sometimes it is a combination. Sometimes it is about getting what you already have to perform better.

Whatever your reason for wanting to capture and treat an air or gas stream, Fowlerex Technologies is able to help you.

We can trace our technology heritage back over 100 years, and our presence in Australia and Asia back over 50 years. With our extensive experience, we are well placed to help you with your next project, whether it be in extraction, processing or finishing. And we will be here to support you for this project, and the next, and the ones after that.

Difficult projects? We love those! No matter the challenge, Fowlerex Technologies should be your first choice as a solution provider. We can not only provide you with the best fit solution for new projects, but we can also optimise your existing equipment and systems.

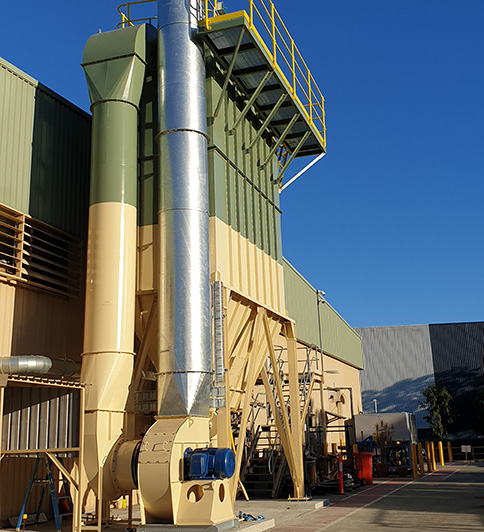

Technologies we are able to offer include cyclones, venturis, baghouses, particulate and gas/vapour scrubbers, went and dry electrostatic precipitators, activated carbon, thermal oxidation, energy generation and recovery, and more.

You do this type of project sometimes. We do them ALL THE TIME. Contact us anytime.

Fowlerex Technologies Pty Ltd

Offices in Australia and New Zealand, Supplying Globally

Head Office:

Wetherill Park, Sydney, Australia

Phone: +61 2 8850 7611

Email: admin@fowlerex.com.au

www.fowlerex.com.au

For Enquiries:

Jeff Mann,

Business Development Engineer

Phone: +61 438 393 487

Email: Jeff.Mann@ fowlerex.com.au

02/17/2024 19:06:44

Visit us at AIMEX stand C150.

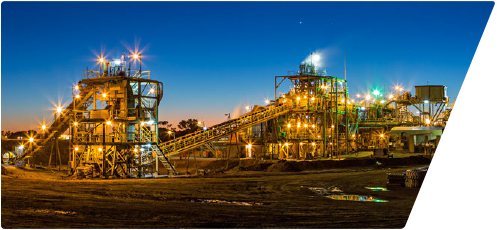

Mining & Resources

Ceramic Wear Components & Applications

Hydrocyclones

Spools, Elbows & Junctions

Impact Pads & Chute Linings

WEAR LININGS

Annexus WA offers the mining and resource industry a range of ceramic based wear and thermal solutions. Our ceramic linings offer the potential of significant cost savings compared with the traditional rubber linings.

Typically, ceramics will outlast rubber linings for Hydrocyclones by 8-12 times and steel spools by 15-20 times in wear resistance. Further savings and production benefits are realized through reduced maintenance due to consistency in the spigot, vortex finder and spool sizes.

MATERIALS

Annexus WA offer a range of industrial ceramics to best suit your application. We would use several factors to determine the most suitable ceramic for your application “ore, slurry type, particle size, angle of impact, pH levels, temperature, pressure, travel direction and the performance of your current material in use.”

Depending on the application and the aforementioned factors we would suggest using the following ceramics.

Siliconised Silicon Carbide (SiSiC)
Sintered Silicon Carbide (SSiC)
Alumina 92% (Al203)
Alumina 99.8% (AI203)

You have a need, we have a solution

www.annexuswa.com

Products available:

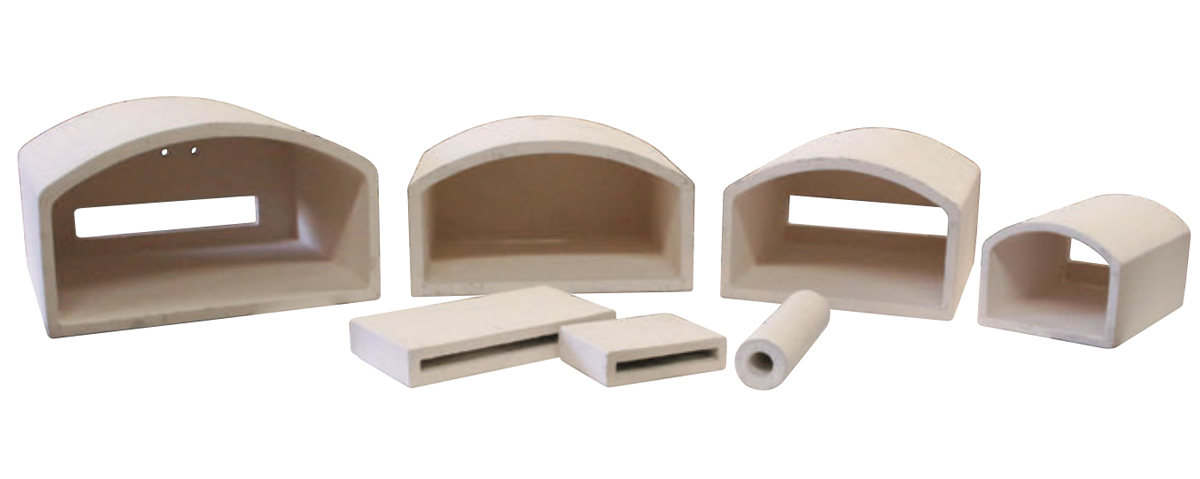

Muffles & Vents

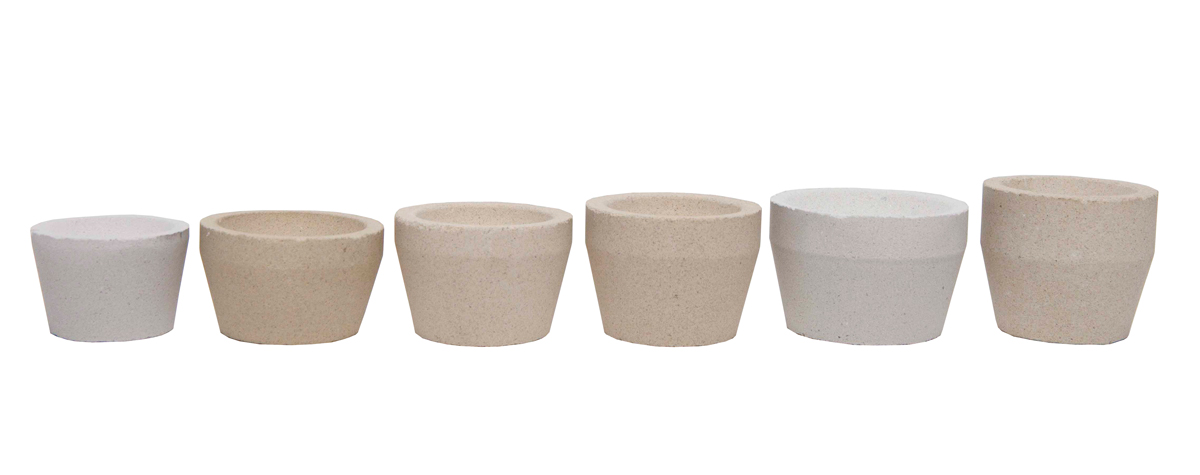

Cupels

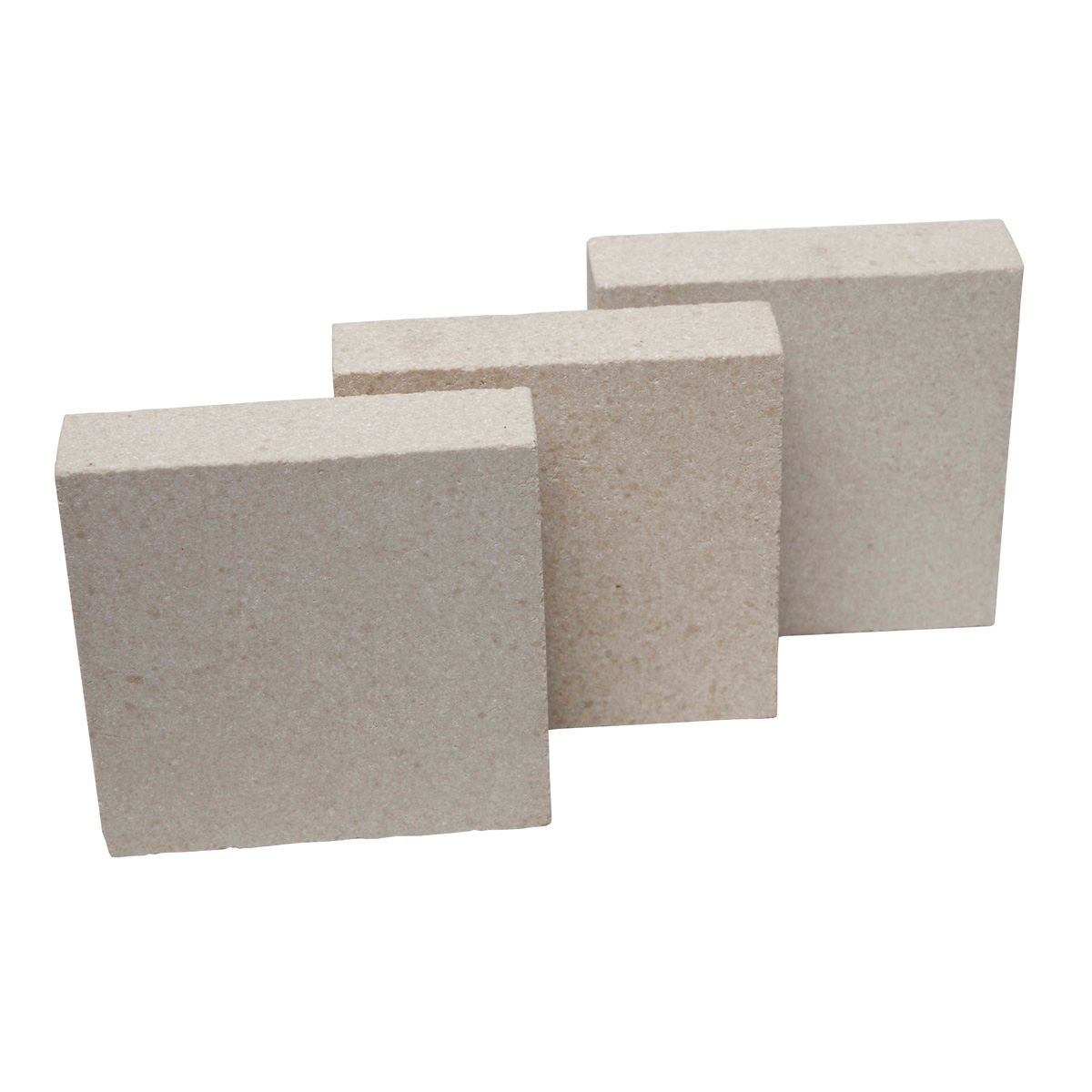

Kiln Batts

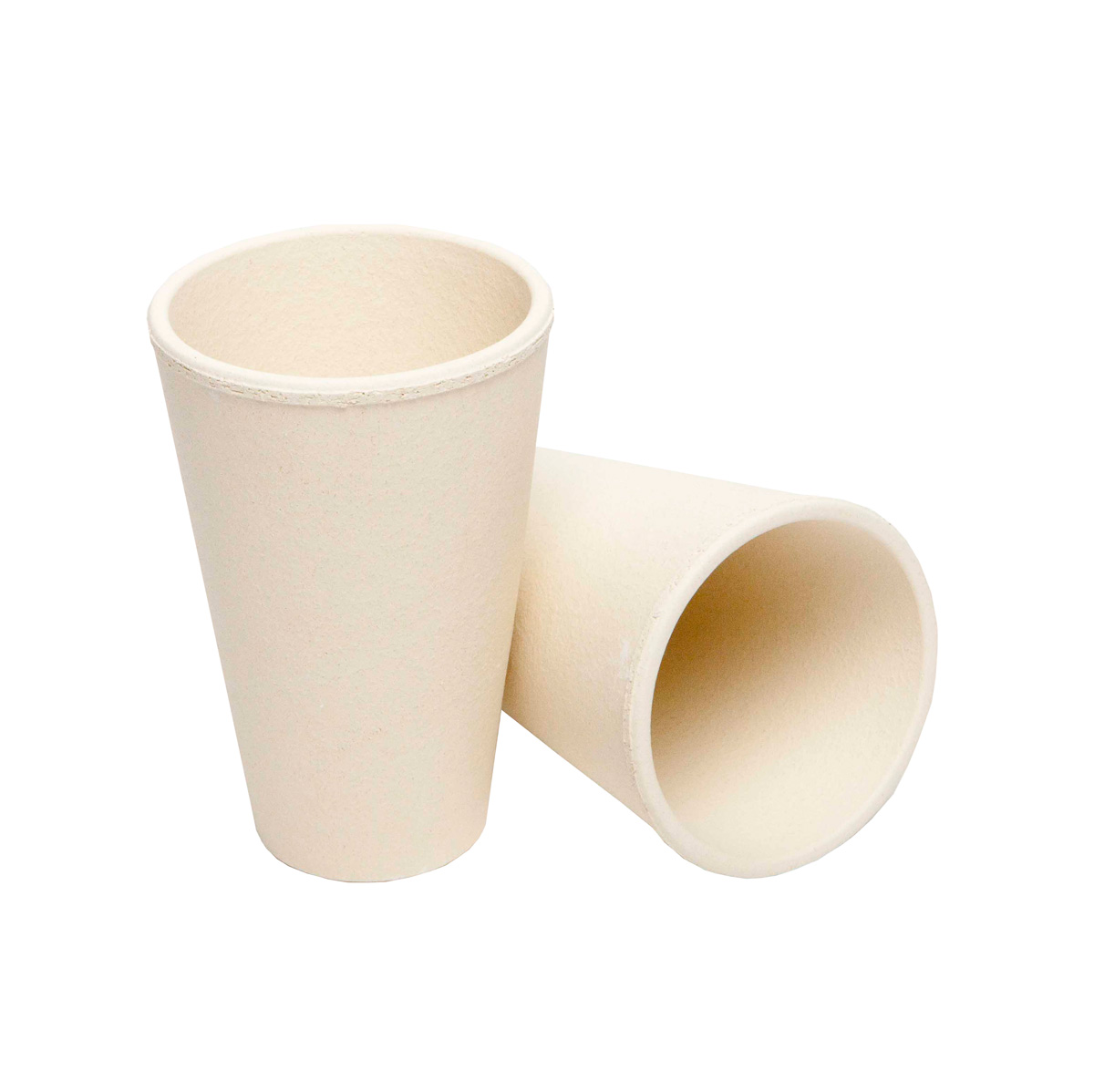

Crucibles

Ceramic Wear Components & Applications

Annexus WA offers a complete range of advanced ceramics in a multitude of types, shapes and sizes designed to extend the production life of material handling and processing equipment. When there are aggressive wear problems on site you need to engage Annexus WA to assist in finding an appropriate cost-effective solution.

Our range of ceramic solutions includes:

High density Alumina’s
Silicon carbides
Specialty ceramics including silicon nitride and zirconia
Engineered and custom designed shapes

Ceramics can be installed into standard and non-standard wear applications such as: Hydrocyclones, Piping Systems including pipe, fittings, values and other pipe work systems.

Chutes and launders
Deflector plates
Distributors/Splitters
Spray Nozzles

Hydrocyclones

Annexus WA specialises in supplying replacement liner parts to accommodate all makes of hydrocyclones. These parts include:

Vortex Finder
Feed Chamber
Cones (upper, middle & lower)
Spigot (Apexes)
Splash Guard

Annexus WA hydrocyclone ceramic liners are typically supplied using Siliconised Silicon Carbide (SiSiC) ceramics. This is a premium ceramic and is generally the most cost-effective material for this application.

We offer a Sintered Silicon Carbide (SSiC) ceramic liners for higher wear resistance where impact angles and partial sizes are at reduced levels. Sintered Silicon Carbide is an ultra-premium ceramic and generally only used in specific, crucial application areas.

Annexus WA offers Alumina (Al2O3 purity levels 92%-99.8%) ceramic liners for increased chemical resistance and higher impact toughness.

Annexus WA hydrocyclone liners are supplied encased in polyurethane housings aiding in the overall reduction of the gross weight of the component as well as protecting the ceramic during shipment, handling and the installation process.

Spools, Elbows & Junctions

Annexus WA offers our range of ceramics to suit the customers’ requirements and site conditions.

Annexus WA specializes in supplying replacement ceramic lined parts to the industry. These parts are supplied within the required specifications (steel and paint finishes). These parts include…

T-Pieces
Y-Pieces
Elbows
Pipe Bends
Overflow Pipes
adaptors
Reducers
Cover Plates
Valves
Other…

Typically, Ceramics will outlast Rubber Linings in wear resistance for:

Hydrocyclones by 8-12 times, and
Steel Spools by 15-20 times

Depending on the application, and the aforementioned factors, we would suggest using the following ceramics:

Siliconised Silicon Carbide (SiSiC)
Sintered Silicon Carbide (SSiC)
Alumina 92% (Al203)
Alumina 99.8% (AI203)

Impact Pads & Chute Linings

Annexus WA supplies a range of impact pads and chute linings. Our products are produced using high impact resistant rubber, a selection of ceramic inserts and are vulcanised onto a steel backing plate ensuring superior wear resistance, rigidity and strength. We have standard sizes and materials available however we can tailored make our range to suit your application and requirements.

Standard Sizes:

300 x 300 x 32mm
300 x 300 x 63mm
300 x 450 x 32mm
300 x 450 x 63mm
Special sizes made to order

Material Options:

Impact Resistant Rubber only (very high impact situations)
92% alumina ceramic vulcanised onto a steel backing plate
ZTA-P ceramic vulcanised onto a steel backing plate (ZTA-P is a premium ZTA product)
SiSiC (Reaction Bonded Silicon Carbide) ceramic vulcanised onto a steel backing plate
